Woosung Vacuum Pump (Oil Rotary Piston Vacuum Pump)

Technical Data		WSSR-V1.5K	WSSR-V2.5K	WSSR-V4.8	WSSR-V7.5K	WSDR-15K
Nominal Displacement  50Hz	l/m	1500	2500	4800	7500	15000
Ultimimate Pressure	Torr	5 x 10ˉ3	5 x 10ˉ3	5 x 10ˉ3	5 x 10ˉ3	5 x 10ˉ3
Motor Version 50Hz/60Hz	Three Phase	380V	380V	380V	380V	380V
Motor Version 50Hz/60Hz	Single Phase	-	-	-	-	-
Nominal Motor Rating kW	Three Phase	2.2	3.7	7.5	11	22
Nominal Motor Rating kW	Single Phase	-	-	-	-	-
Nominal Motor Speed 50Hz	Min-1	410	410	410	380	370
Oil filling	liter	5	8	17	29	55
Weight Approx 50Hz/60Hz	KG	236	324	555	791	1245
Cooling water	L/min	-	5	5	7	-



Design Features

1. Excellent ultimate vacuum and pumping speed.
2. Easy control of gas ballast valve.
3. Simple compact design.
4. Efficient cooling system, air-cooling for WSSR-V1.5K and water-cooling for the rest, for continuous operation.
5. Low vibration level and low noise level.
6. Vacuum flange (KSB-1540) is used for inlet and outlet of pump.
7. Easy maintenance and repairing.

Woosung Vacuum Pump WSSR-V1.5K

Woosung Vacuum Pump WSSR-V2.5K

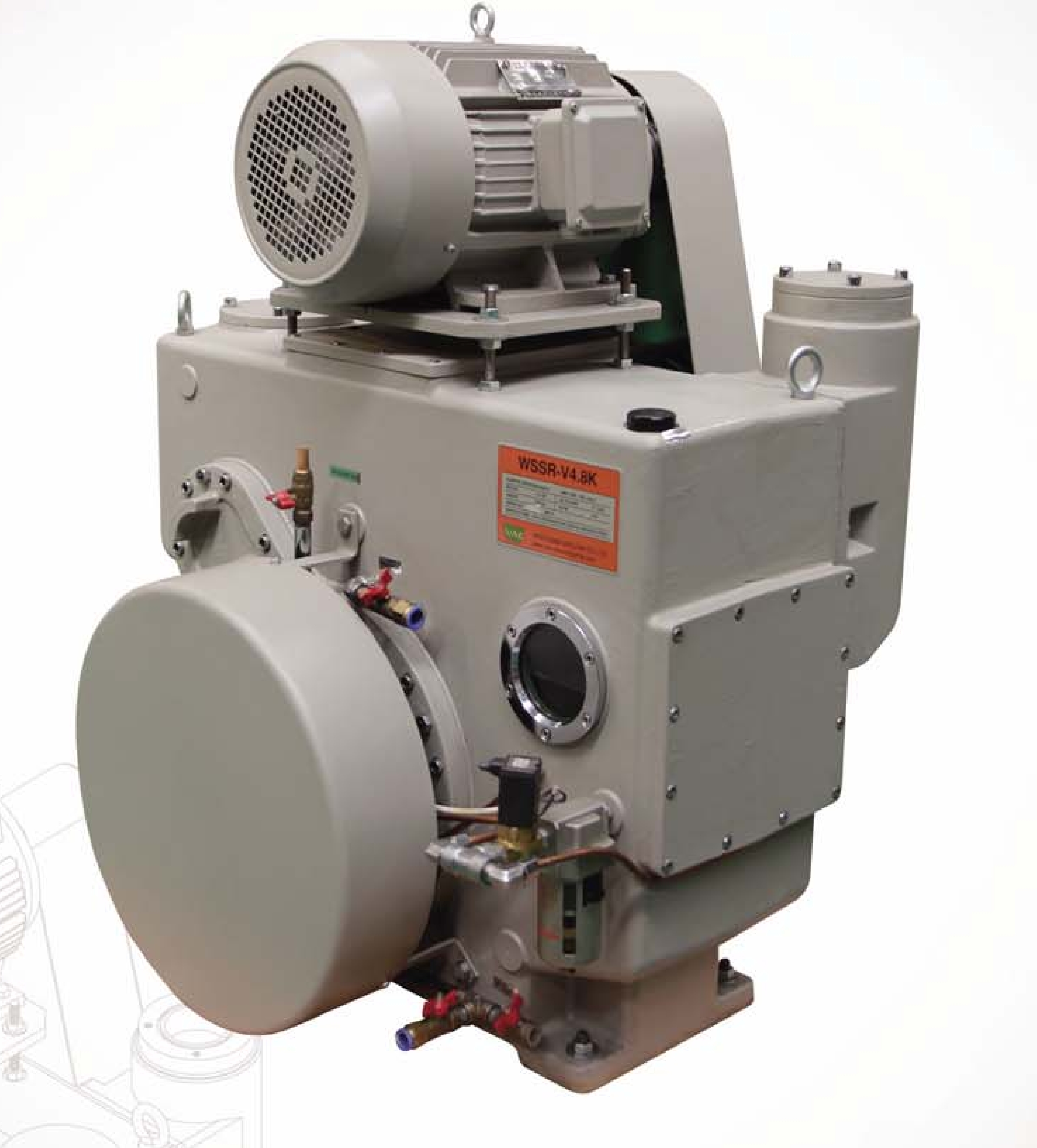

Woosung Vacuum Pump WSSR-V4.8K

Woosung Vacuum Pump WSSR-V7.5K

Woosung Vacuum Pump WSDR-15K
